Transfer system for door locks assembly

Project Description

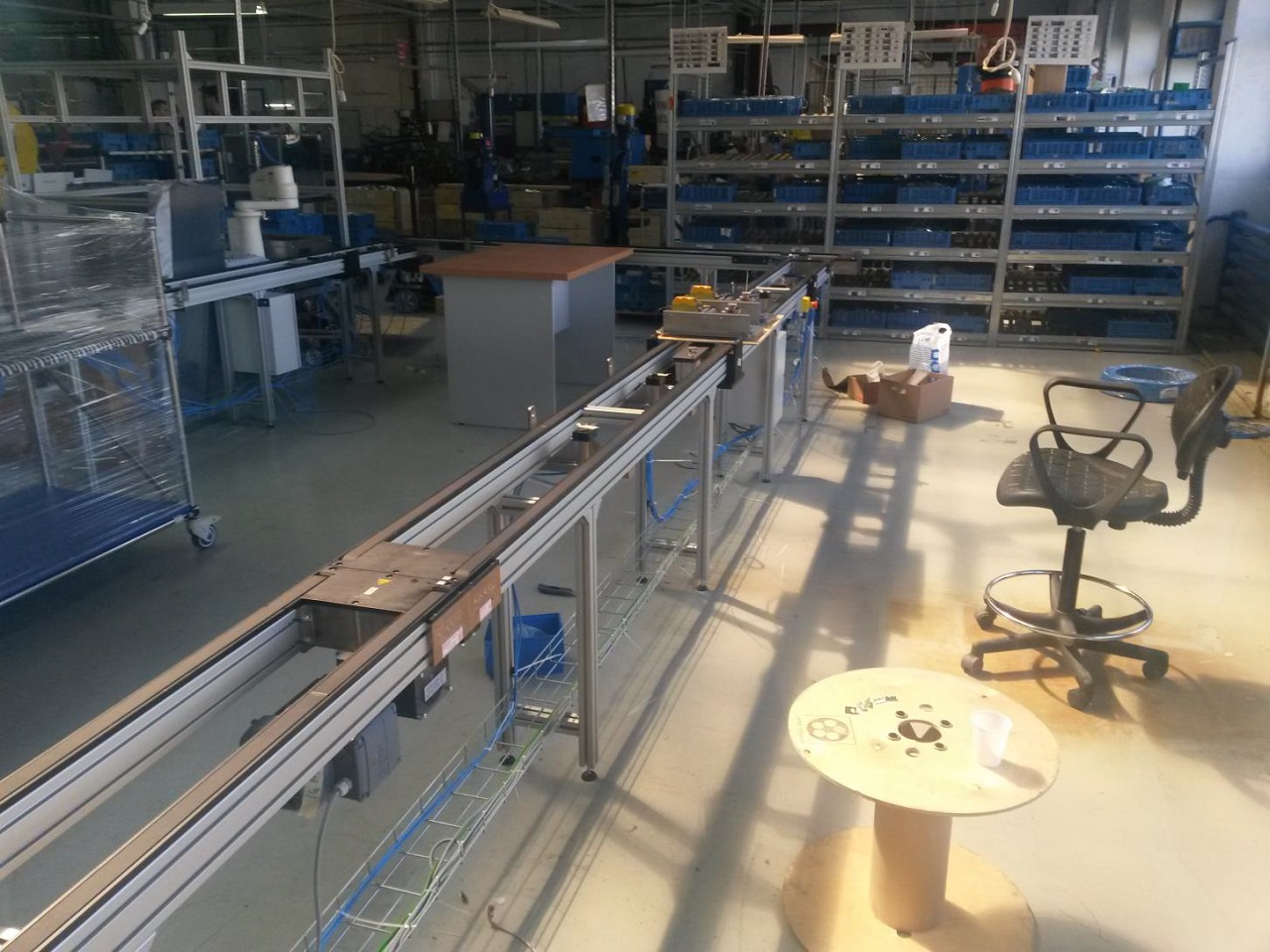

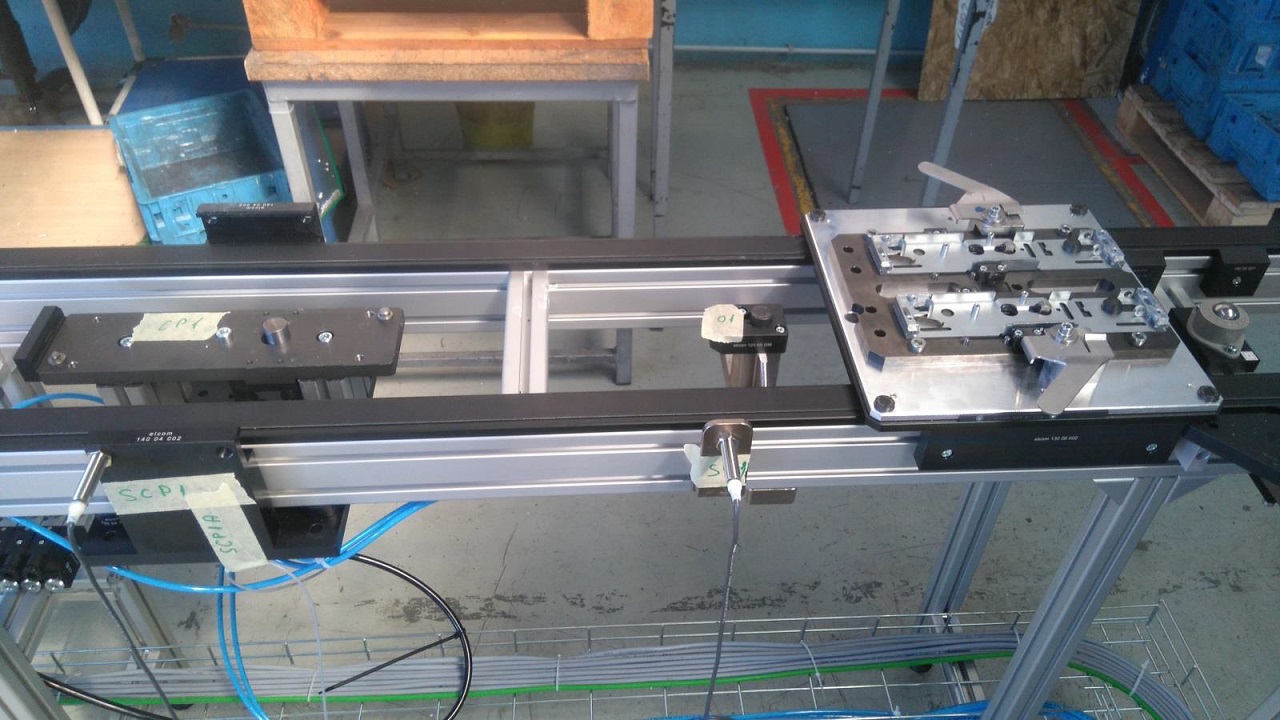

Our Customer, global leader in door opening solutions, needed a system for automated screwing, riveting, assembly and testing of door locks. We provided the customized solution of a 10 meters x 3,2 meters pallet transfer system on Item aluminium profile frame. The conveying units are driven by 0.55 kW motors on constant 19 m/min speed. The pallets are stopped to each working place by pneumatic positioning units due to the inductive sensors and Camozzi valves.
