Production Line Automation for Roof Frames
Conveyor with pneumatic lifters and grippers automating roof window frame sorting - robot palletizing seven parts at a time across 11 layers, saving labor and accelerating production.
Industry
Electronics
Portfolio
Robotics
Brand
Elcom, Schneider, Tech-Con, Universal Robots
Application
Pick & Place
Background of the Customer
Our customer is the hungarian subsidiary of the global parent company, which is engaged in the development, manufacture and distribution of energy management and industrial automation solutions. The company supports sustainable and efficient energy use in industrial, commercial and residential environments with its intelligent electrical products and digital technologies.
What was the requirement?
Our client manufactures circuit breakers and FI relays, wanted to automate the servicing of special purpose machines. Previously, this task was performed by human operators, but the goal was to make the process more efficient and replace human labor.
Our offered Solution

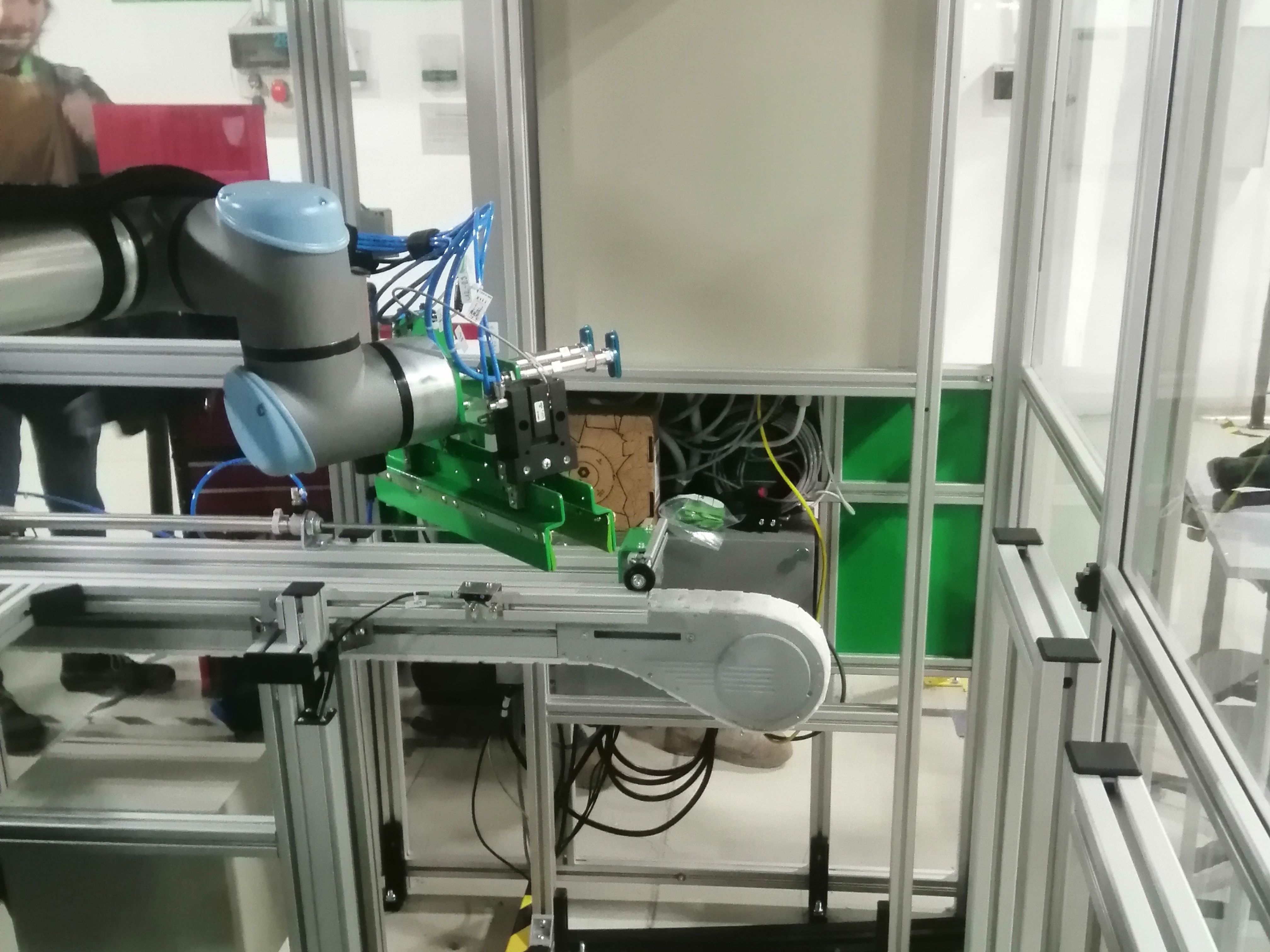

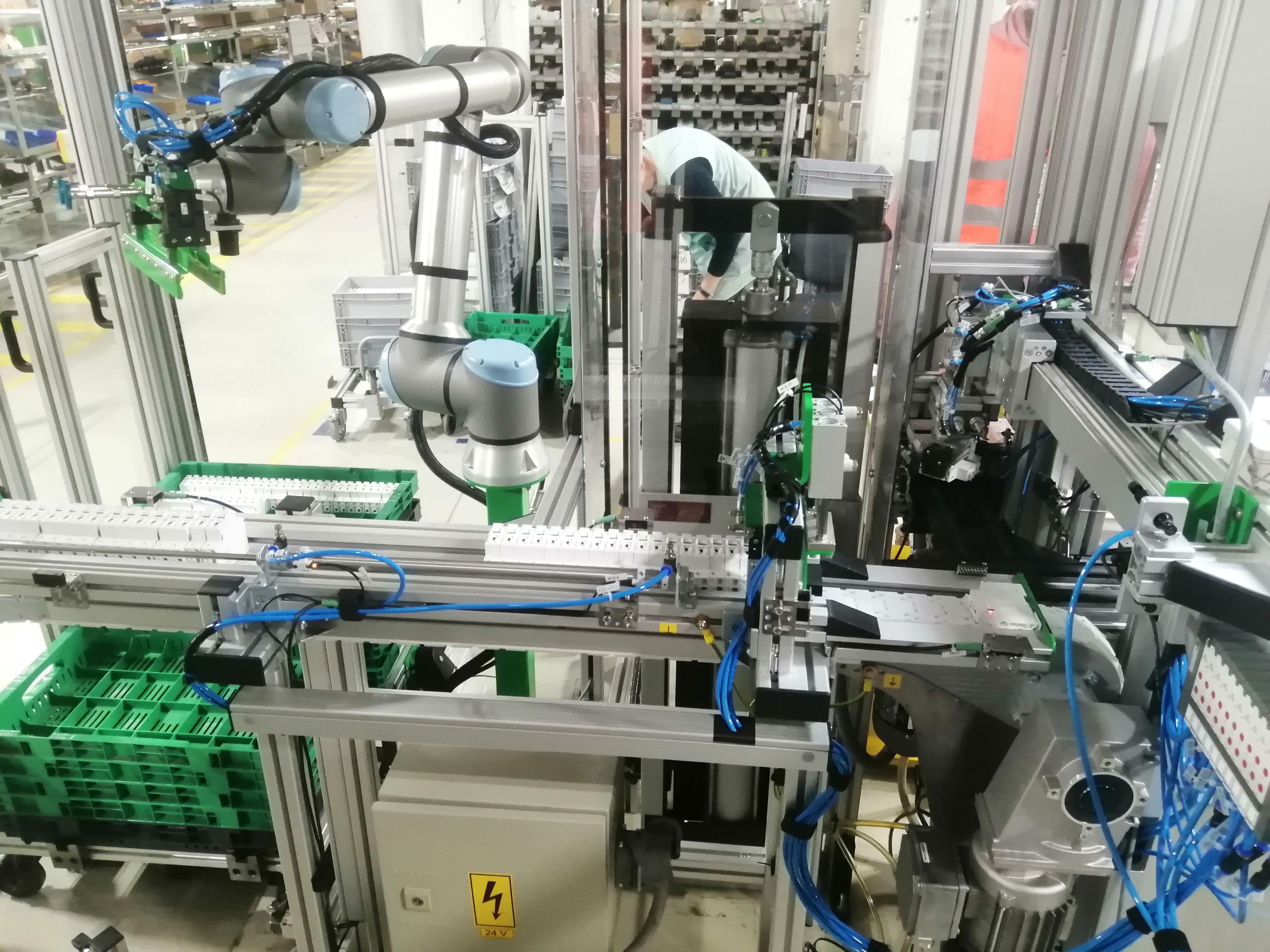

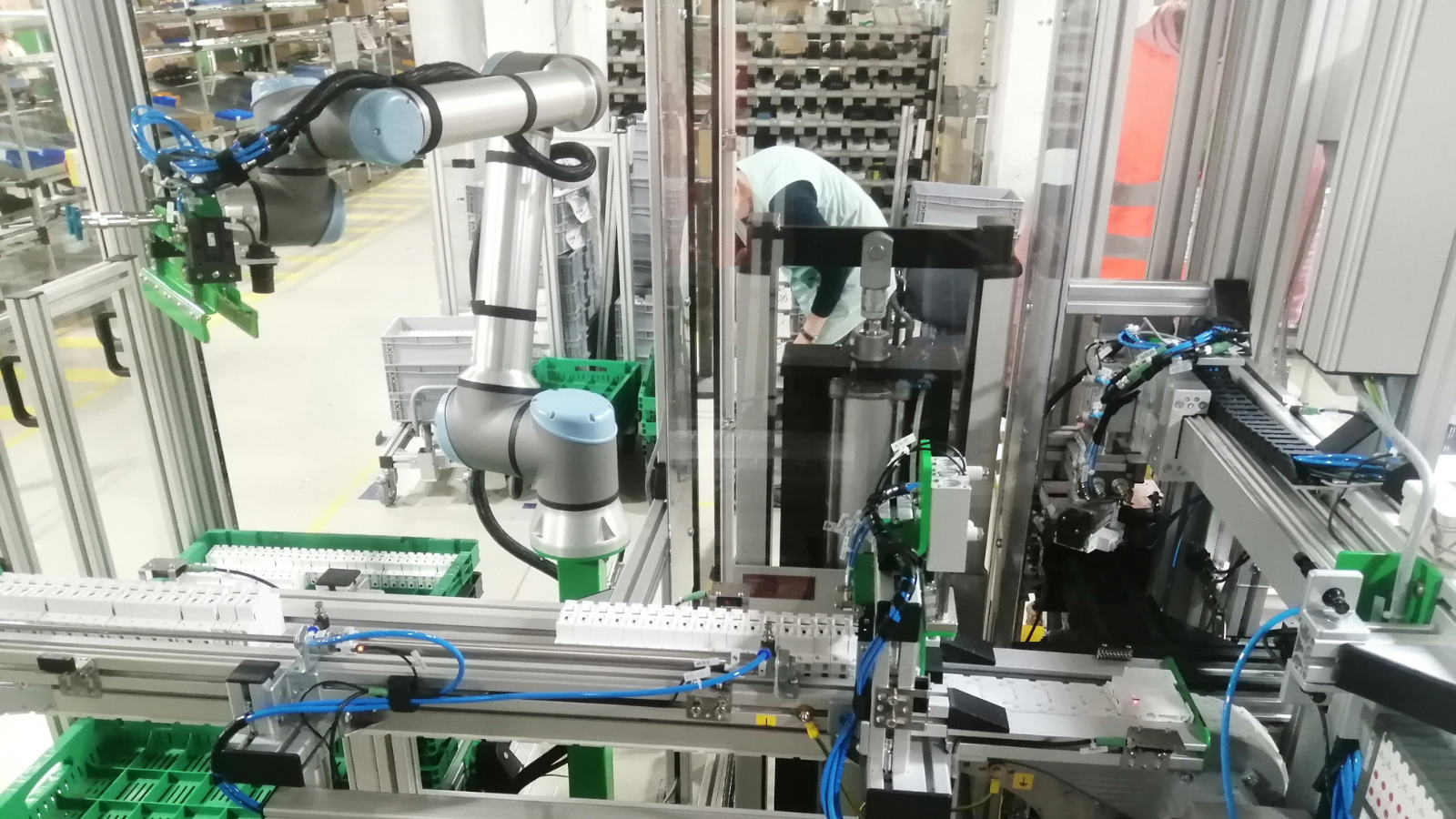

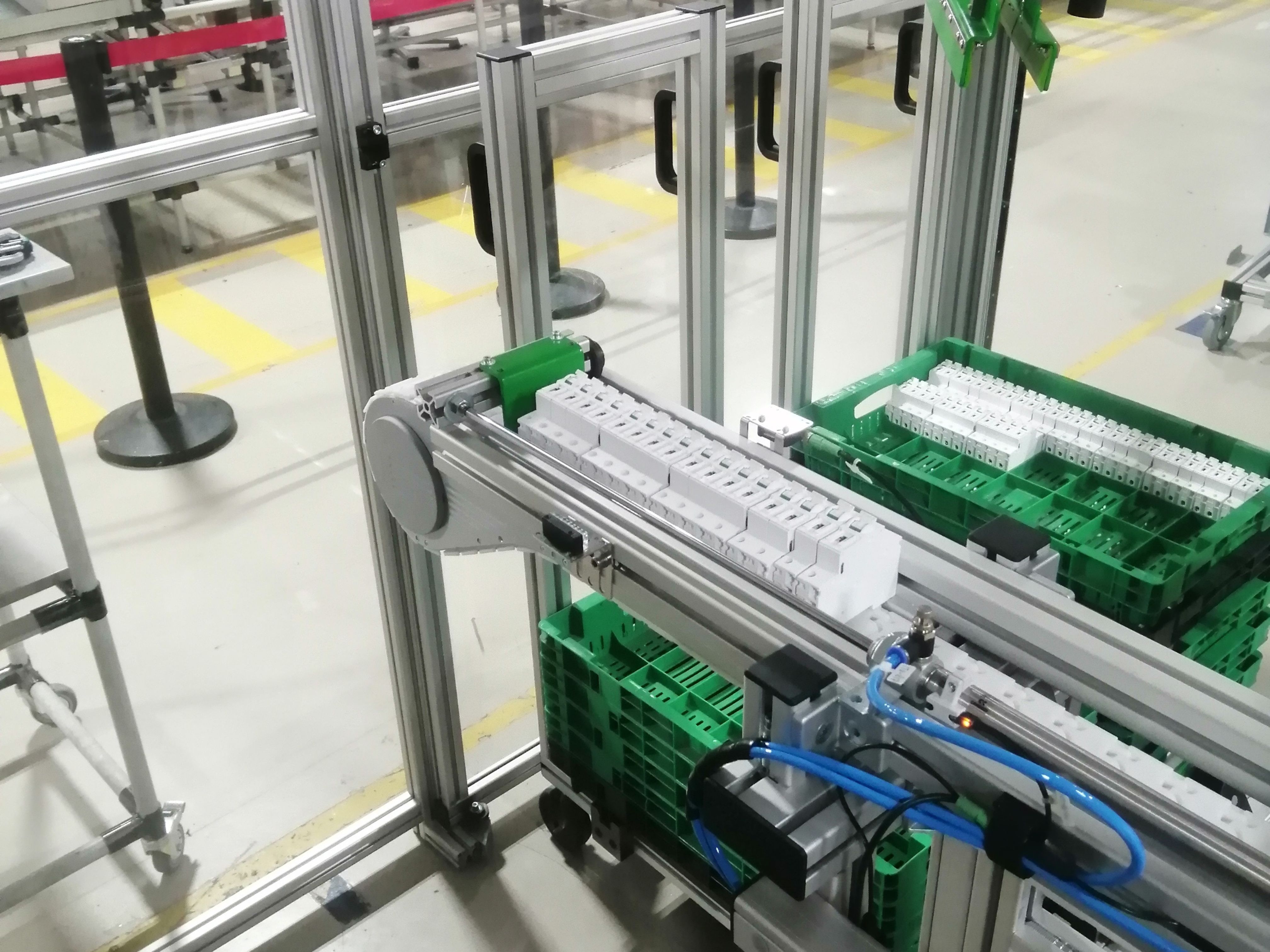

We installed a UR10 robot that can lift 19 circuit breakers from the plastic box at the same time with the help of a unique gripper and then place them on a conveyor. The conveyor separates the pieces one by one and turns them to a horizontal position, and then they are placed on the pallet gripper with the help of a two-axis actuator.
What was the benefit for the customer?
With the automated system, our customer was able to significantly increase the efficiency and accuracy of production. By freeing up human resources, a safer and more reliable workflow has developed, while production has become more continuous and predictable.
More references
UR Robot Integration for Battery Packaging
UR robot with custom gripper automating IQOS battery packaging - intuitive programming enabling operators to run and adjust the system independently without robotics expertise.
Automated Production Support System
UR robot with dual gripper simultaneously serving two NEF400 CNC machines - automating raw part loading and finished part unloading, freeing operators for higher-value tasks.
Robotic Screwdriving System
UR10 robot integrated with Deprag screwdriver handling three product types inline - eliminating missing screws, drastically reducing complaints and improving production quality.
Automated Powder Coating Solution
Collaborative robotic powder coating line eliminating manual painting - reducing scrap, improving finish quality, cutting material waste and creating a safer production environment.
Educational Robotics Integration

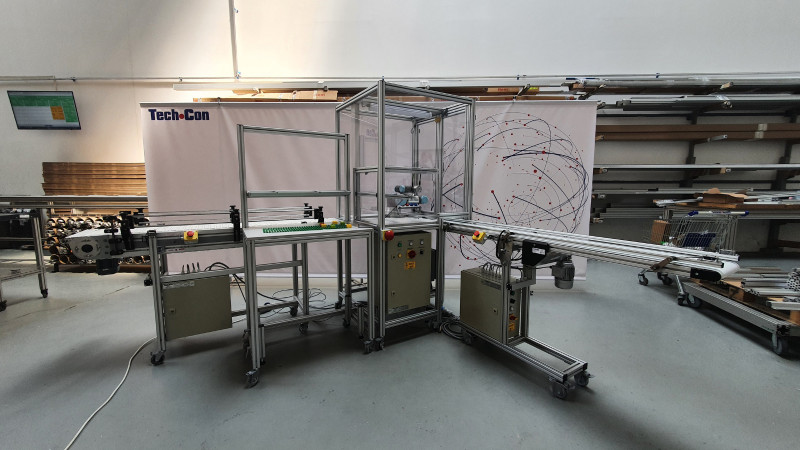

Four cobot stations with conveyors and 2D camera grippers installed at the University of Debrecen - giving students hands-on experience with real industrial robotics technologies.
