Production Line Automation for Roof Frames
Conveyor with pneumatic lifters and grippers automating roof window frame sorting - robot palletizing seven parts at a time across 11 layers, saving labor and accelerating production.
Production Line Efficiency Enhancement
Industry
Portfolio
Conveyor Systems, Machine Building, Pneumatics
Brand
Application
Background of the Customer
Our client is one of the world’s leading premium automakers, known for its innovative technologies, sophisticated design, and reliable quality. Its brand stands for sportiness, elegance and forward-looking solutions.
What was the requirement?
Our customer’s goal was to bring the parts from outside the closed production line directly to the inside of the production line, so that they could continuously “feed” the production line. This required a solution that was not only reliable and safe, but also reduced the time and labor effort associated with material handling.
Our offered Solution

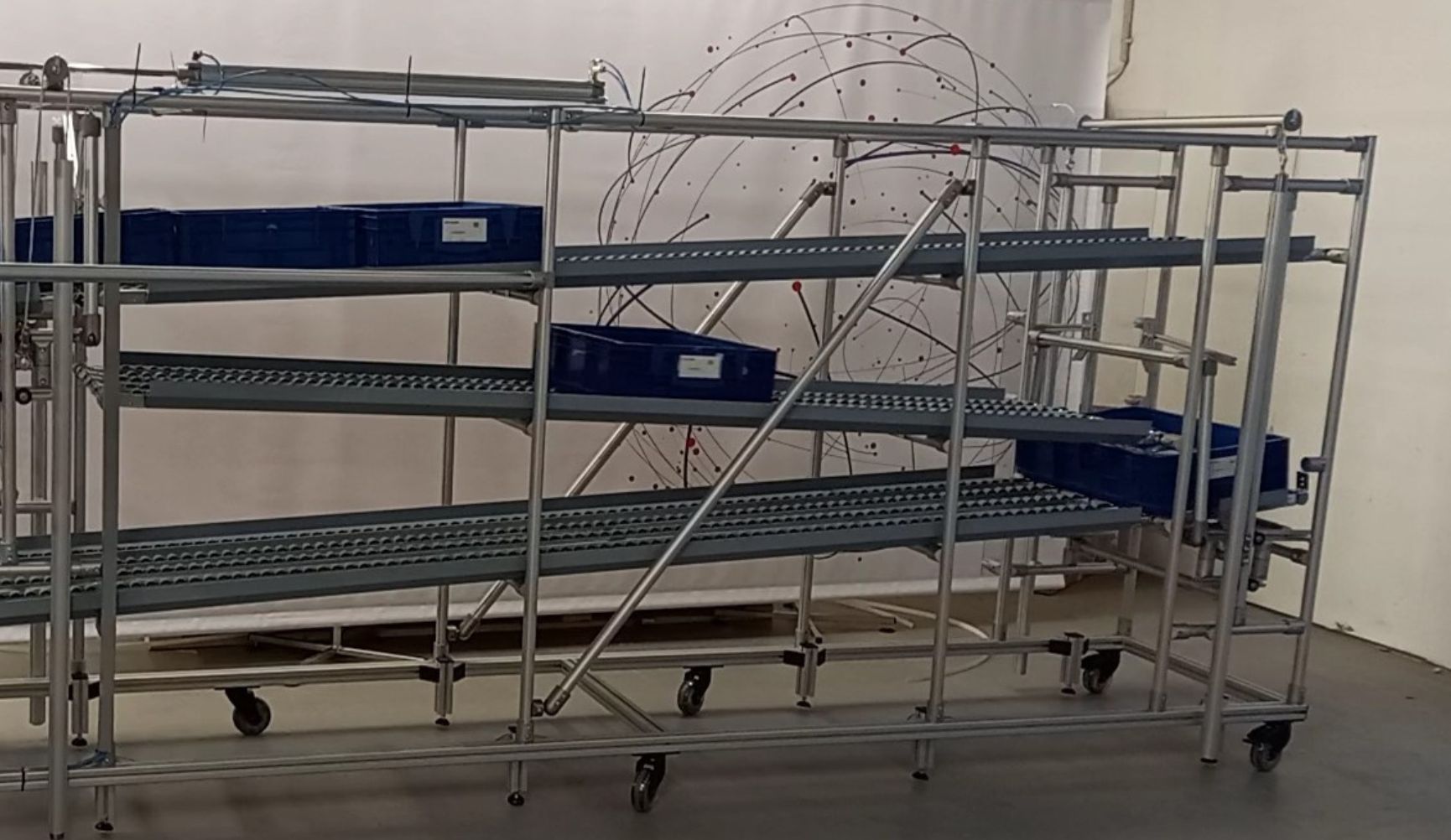

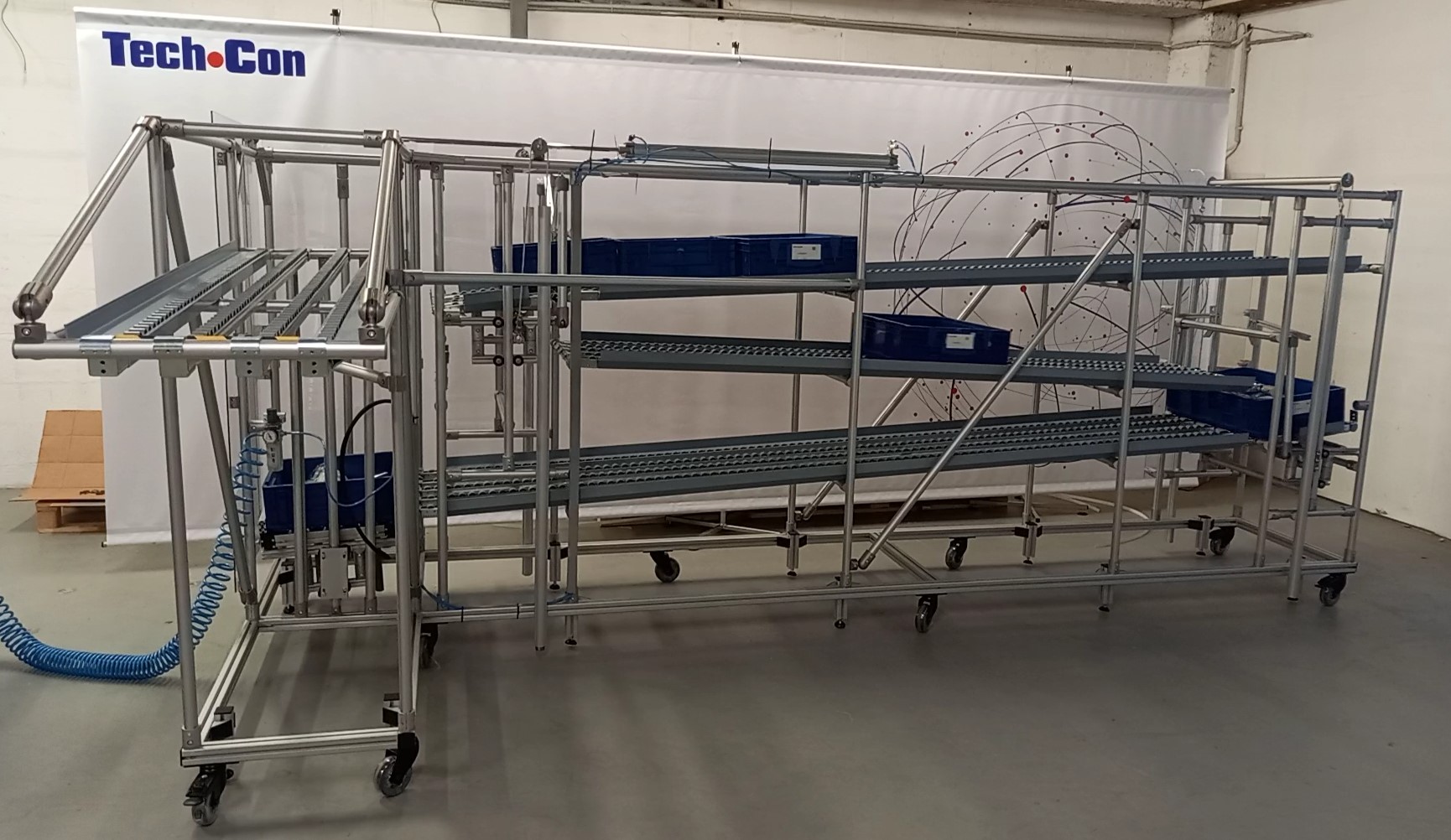

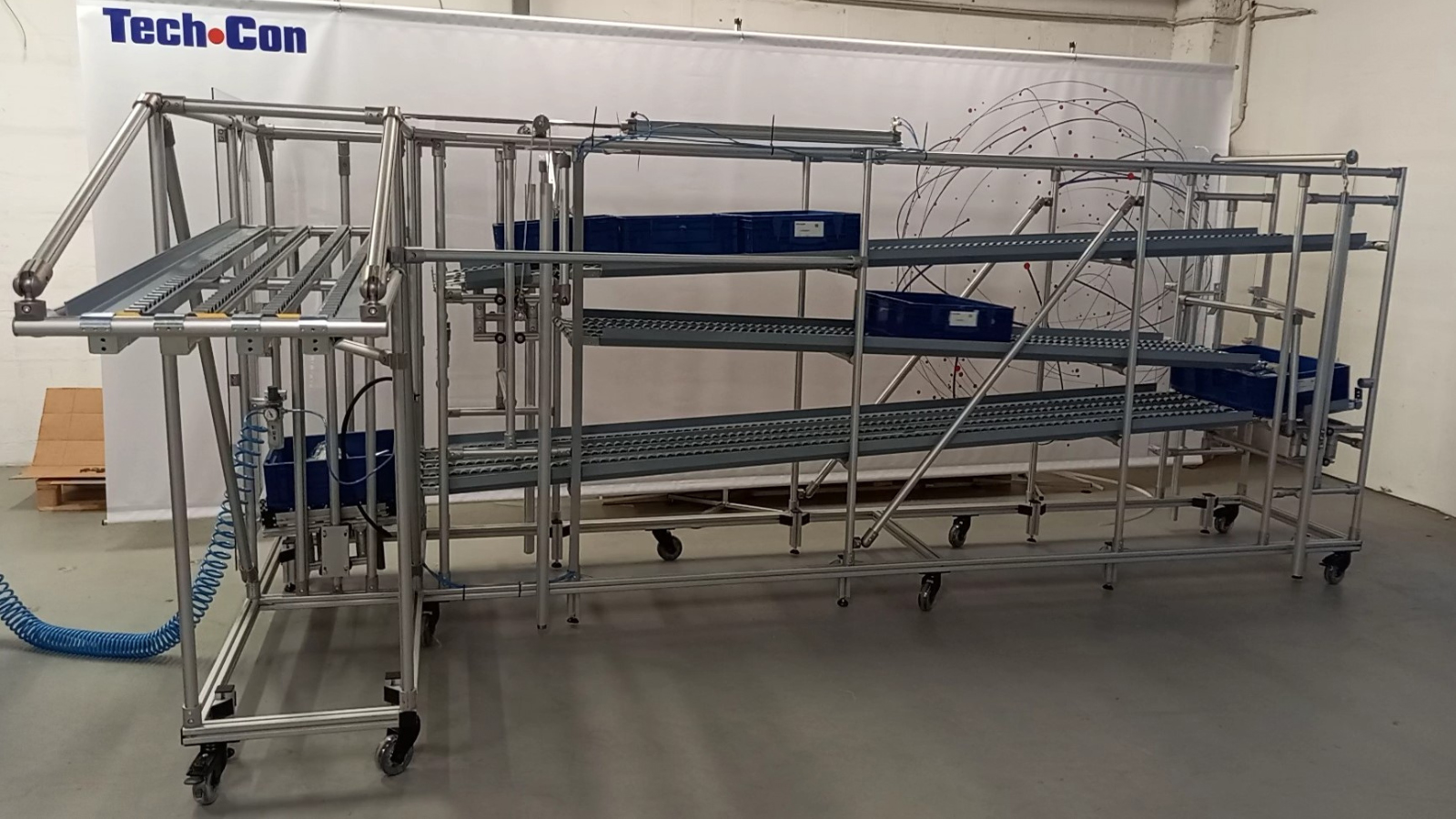

To solve the task, we installed a karakuri system, which consists of a gravity roller track with a pneumatic elevator. This system allows for a smooth, automatic supply of parts within the production line, while gravity and a pneumatic lift ensure a continuous flow of material. With this solution, we replaced an old, outdated roller track. The system also comes with a FIFO (First In, First Out) shelf, which ensures that the order of the parts is always maintained.
What was the benefit for the customer?
For our client, the introduction of the karakuri system brought significant benefits. The time for material handling tasks was reduced from 3 hours to 1 hour, which meant significant time savings. The logistical burden has decreased, so the work of material colleagues has become less burdensome and more efficient. The uninterrupted supply of the production line was ensured, while the use of the FIFO shelf guaranteed the correct order and quality of the parts. This not only increased production efficiency, but also helped to optimize the production process and reduce production costs.
