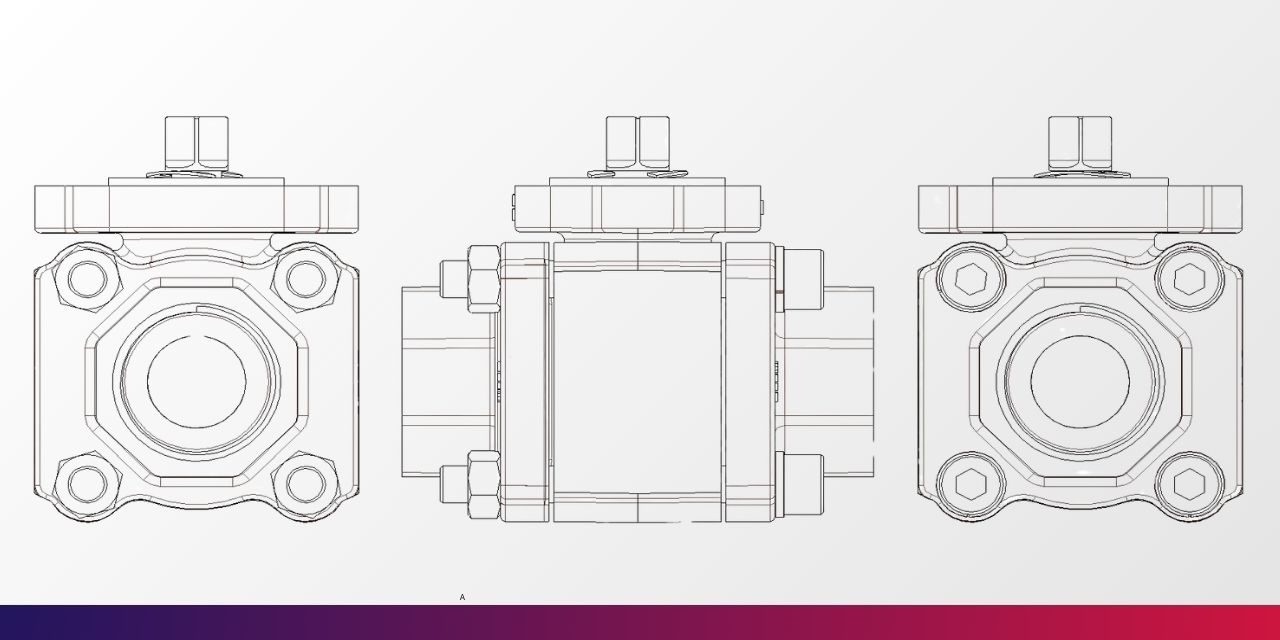

Kinetrol’s range of special engineered ball valves feature UHMWPE (ultra-high molecular weight polyethylene) seats and have been specially designed for high cycle reliability for abrasive process media, such as slurry. Currently, they are available as 1” Class 900, 2” Class 900, 3 piece ball valves with a process temperature of -40ºC to +80ºC.
- Class 900 (148.9 Bar Max)
- Floating Ball – Reduced Bore
- O-ring loaded UHMWPE Seats
- Tested at 100bar – 1M cycles
- ISO5211 Mounting Pad 1M cycles
- Operating Limits -40°C to 80°C (-40°F to 176°F)
- PED Category I Module A
- Group 2 : Liquids & Gases
- Designed to EN12516-1
- Tested to EN1226-1
- ATEX Category 2
- Three-piece severe duty ball valves
