- Safety options
- Low deflection
- Lightweight construction

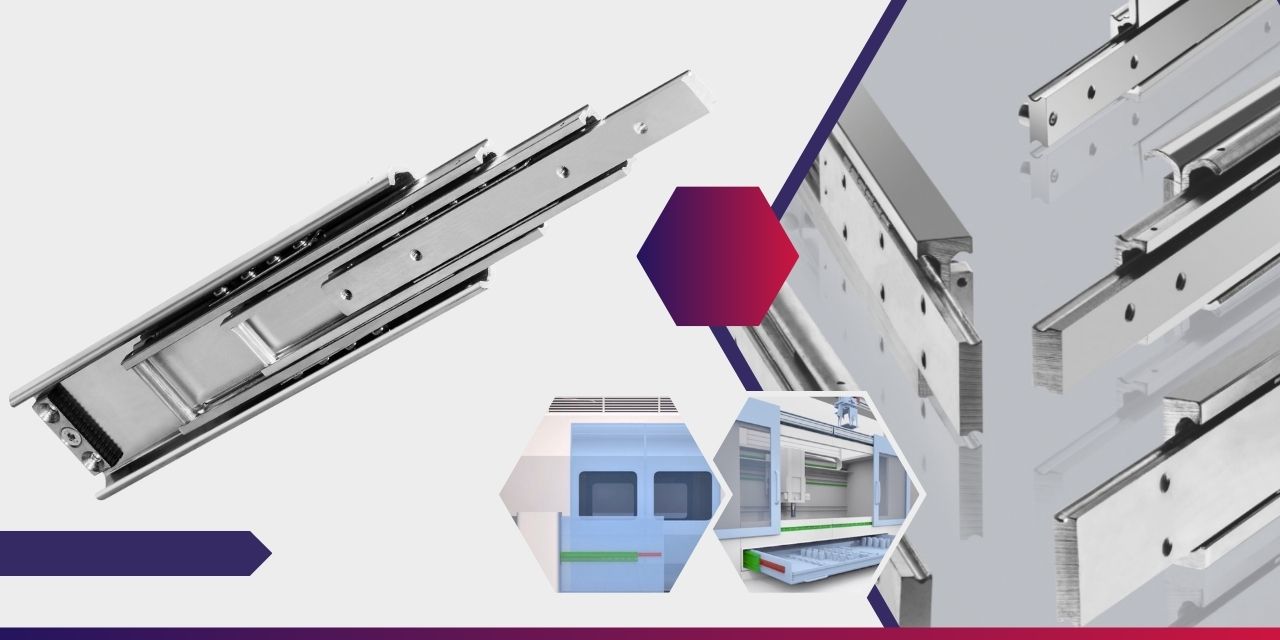

Extracting heavy loads
These guides come in steel, aluminum, and stainless steel. If you need telescopic guides available for partial, full, and overextended applications, this is your option.

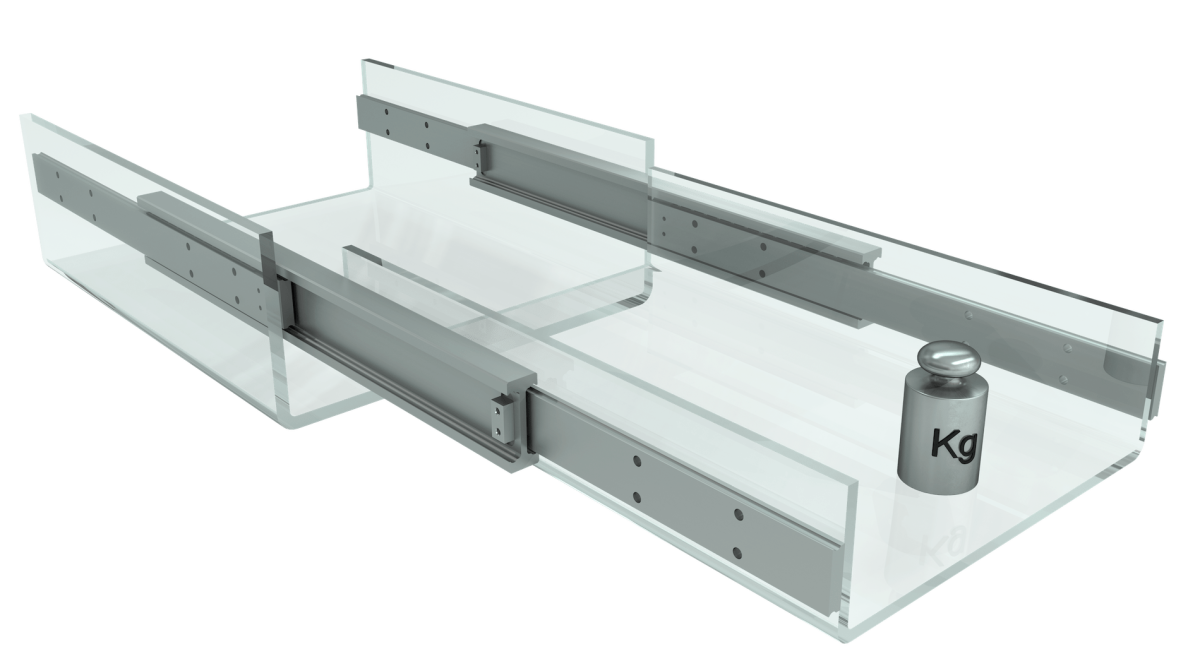

Because Hegra Rail has extremely sturdy profiles, they can extract heavy loads with minimum deflection. Specifically, they can extract up to 200% of the length of the guide in a closed position. Since they are available in aluminum, this power can also be lightweight.
- High load capacity
- Overextraction up to 200%
- Anticorrosion
| Hegra Rail H1C Cost effective ball slide with super-extension up to 150%. Very compact in thickness. | Hegra Rail H1T Super-extension ball slide up to 200%. Payload & stroke up to 700 Kg & 3 m. | Hegra Rail H1T-X tainless steel super-extension ball slide up to 200%. Payload & Stroke up to 420 Kg & 3 m. |
| Hegra Rail HGT Rigid and full extension ball slide. Up to 2000 Kg/pair. | Hegra Rail HGT-X Rigid and full extension ball slide. Load capacity up to 1200 Kg. | Hegra Rail HTT Very rigid, cost effective, ball slide with partial extension. Numerous optional accessories. |
| Hegra Rail HTT-X Very rigid ball slide with partial extension. Numerous optional accessories. | Hegra Rail HVC Compact ball slide with full extension. Section/fixing according to market standard | Hegra Rail HVC-X Very compact full extension ball slide. Section and fixing according to market standard. |
