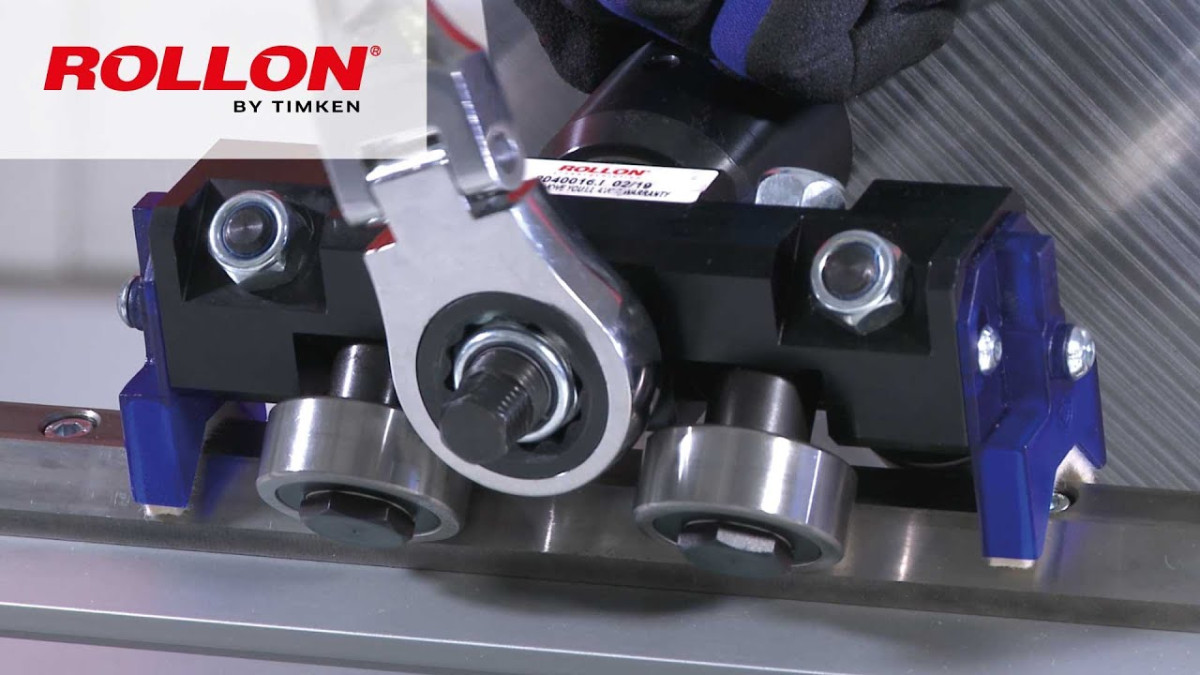

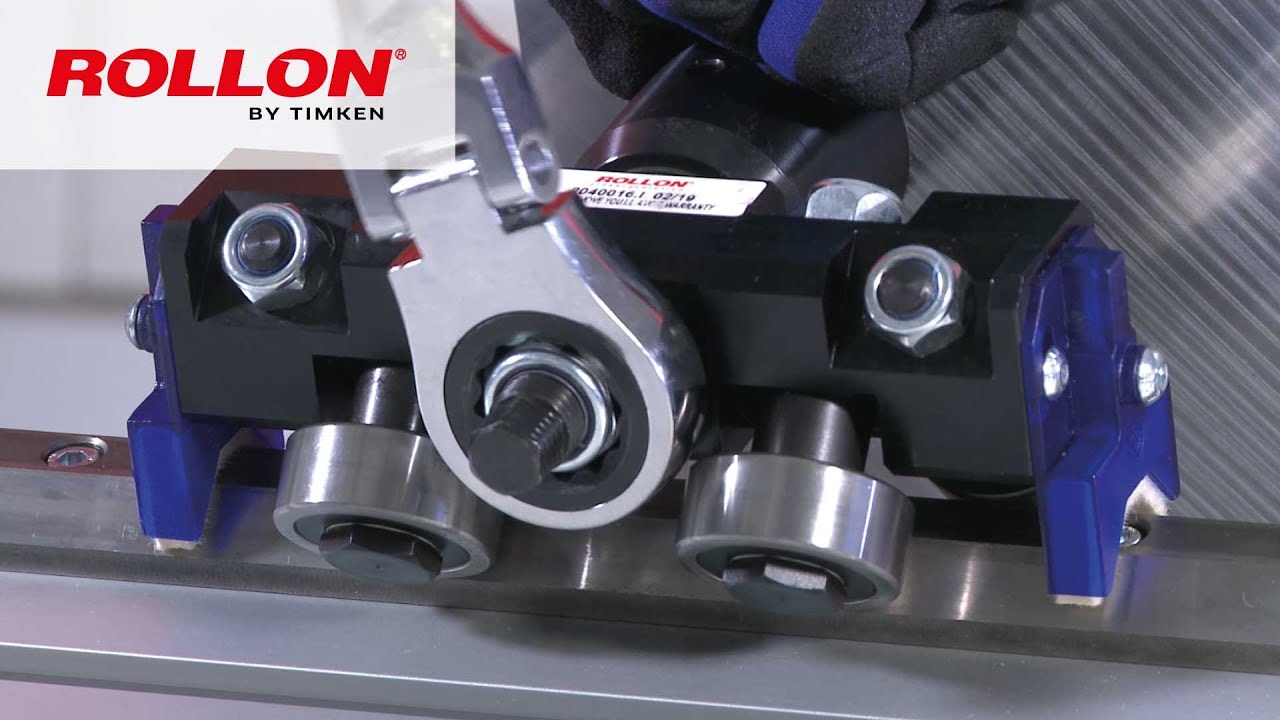

Rollon Prismatic Rail

The Choice for Heavy Loads

Prismatic rails with induction hardened V-shaped raceways. Rails can be machined to create joinable versions for longer strokes.

rollon

Key Features

Long Lifetime

Due to induction hardened raceways. Rail made of hardened C45 steel with hardness > 58 HRC.

High Dynamics

Speed up to 7 m/s, acceleration up to 20 m/s². Load capacity up to 15000 N/skid.

Simple Mounting

Rail jointing possible to get unlimited lengths. Rails can be machined and joined for longer lengths.

Self-aligning System

High self-alignment properties thanks to a pivot system with axial clearance. Compensation of misalignments up to 4 mm for a configuration of two axes mounted in parallel.

Optimal Reliability in Dirty Environments

Rollers available in cylindrical or V-shaped variants, with variable diameter from Ø30 to Ø62 mm. Operating temperature range between -10°C and +80°C.

  • Rail jointing possible to get unlimited lengths
  • Hardened steel raceways. Load capacity up to 15000 N/skid. Max. speed 7 m/s. Max. acceleration 20 m/s²
  • High self-alignment properties thanks to a pivot system with axial clearance mounted on the roller carriages
  • Compensation of misalignments up to 4 mm for a configuration of two axes mounted in parallel
  • Rail made of hardened C45 steel. Hardness > 58 HRC
  • Aluminium slider configurable with 3 to 6 rollers, available in cylindrical or V-shaped variants
  • Operating temperature range between -10°C and +80°C
  • Suitable for use in a dirty environment
